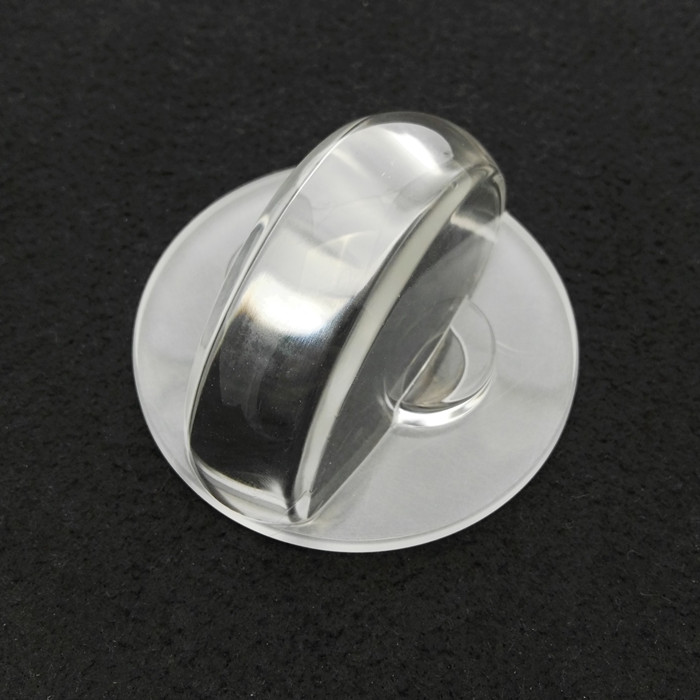

70mm optical led Glass lens for window light and trick light
70mm optical led Glass lens  for window light and trick light

Product Description

70mm optical led

Glass lens KL-D70-1-1W for window light

Product Description

Model

KL-D70-1-1W

Beam angle

5*360 degree

Material

high borosilicate glass 3.3

Refractive Index

1.474

Light Transmittance

94%, after AR coating light transmittance can reach 99%

Working Temperature

from -50degree to 550degree

Color

Transparent

Tensile Strength

40- 120Nmm - 2

Certificates

ISO9001/RoHS/SGS

Performance Advantages

 A low inflation rate, high temperature resistant,high strength,

high hardness, high light transmittance and high chemical stability

Suitable Led Power



1w-30w led,using led light-emitting area within 11mm



Accessories

no

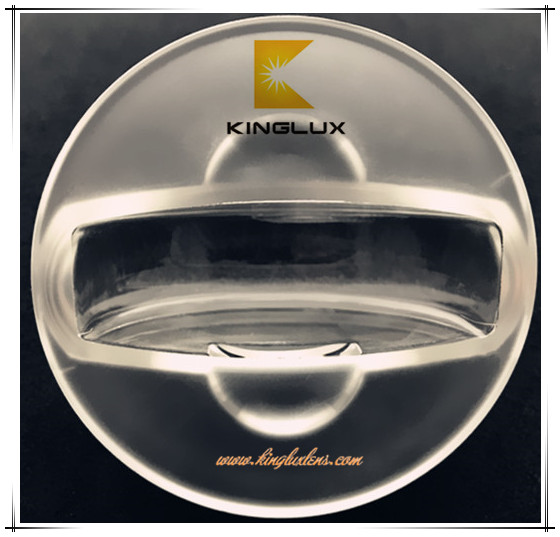

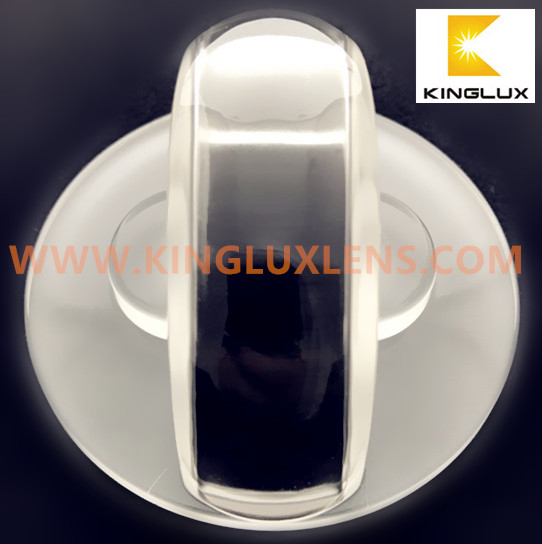

Pictures

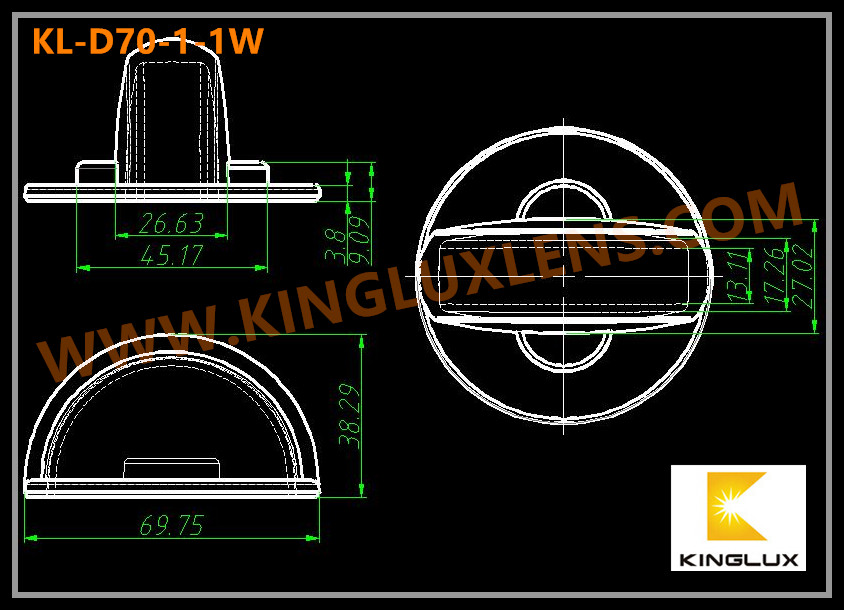

Lens size

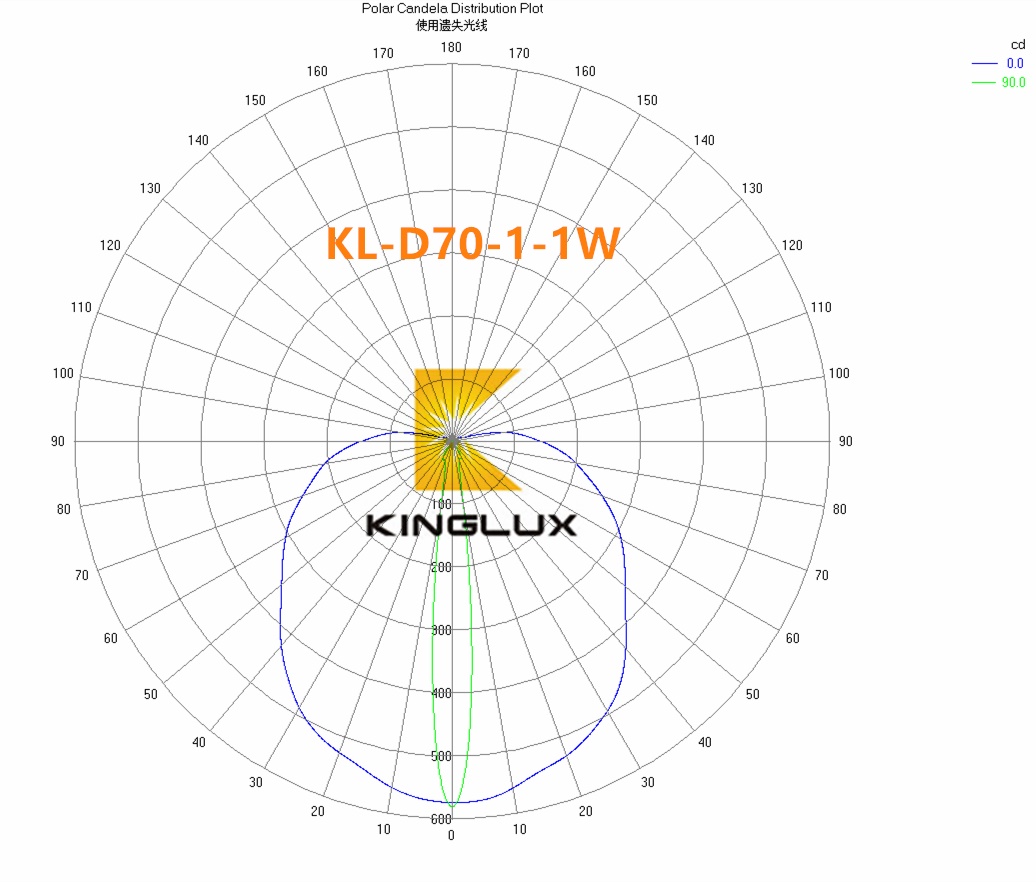

Optical simulation -- Polar Candela Distribution Plot

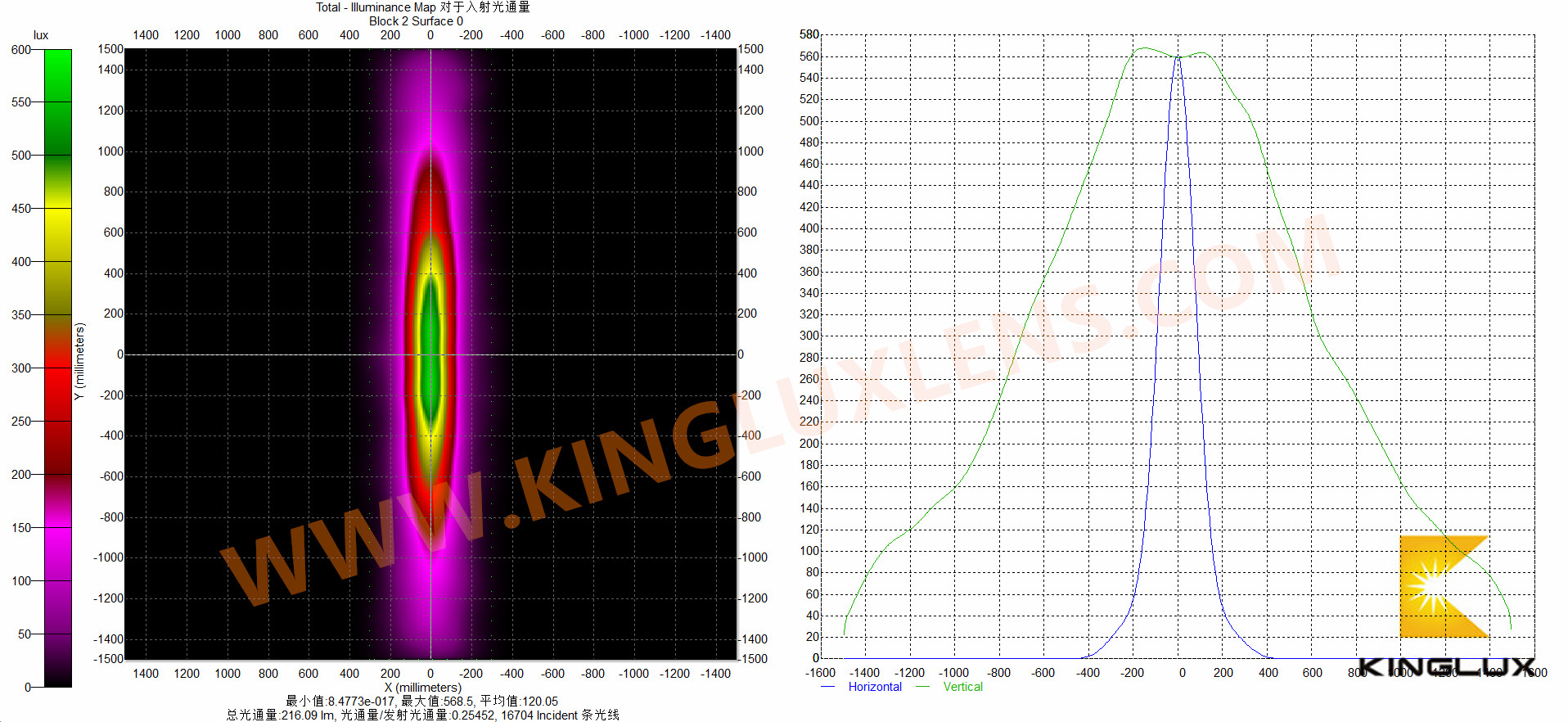

Optical simulation -- I luminance map(10m)



Application

 widely used for window light,trick light etc

OEM

YES

Other

 *offer free optical technical support.

*offer a lifetime warranty for our optical glass lens


   Packaging & Shipping

2 pieces glass lens in one box/40 boxes in one carton/ carton dimension L38*W35*H21

Our Services

   1. provide optical Solution,solve the problem of the led light distribution.
2. design and production of glass lens according to the customer's samples or requirements
3.Have our own CNC machining center,can finish glass lens mold development,glass lens sample make within 7 days.
